L1 Reconciliation Dashboard¶

Generic SHOULD-constraint visualization for any L2-modeled institution. Currently rendered against Your Institution (spec_example).

The L1 Reconciliation Dashboard visualizes every L1 SHOULD-constraint declared by the SPEC against the data of one L2 instance — descriptions, account universe, rail topology, posting requirements, limit caps, aging windows. It's the canonical L1 surface, configured by the L2 instance you point it at. Switch the L2 → switch the persona, prose, and scenario coverage without changing a line of dashboard code.

Screenshot

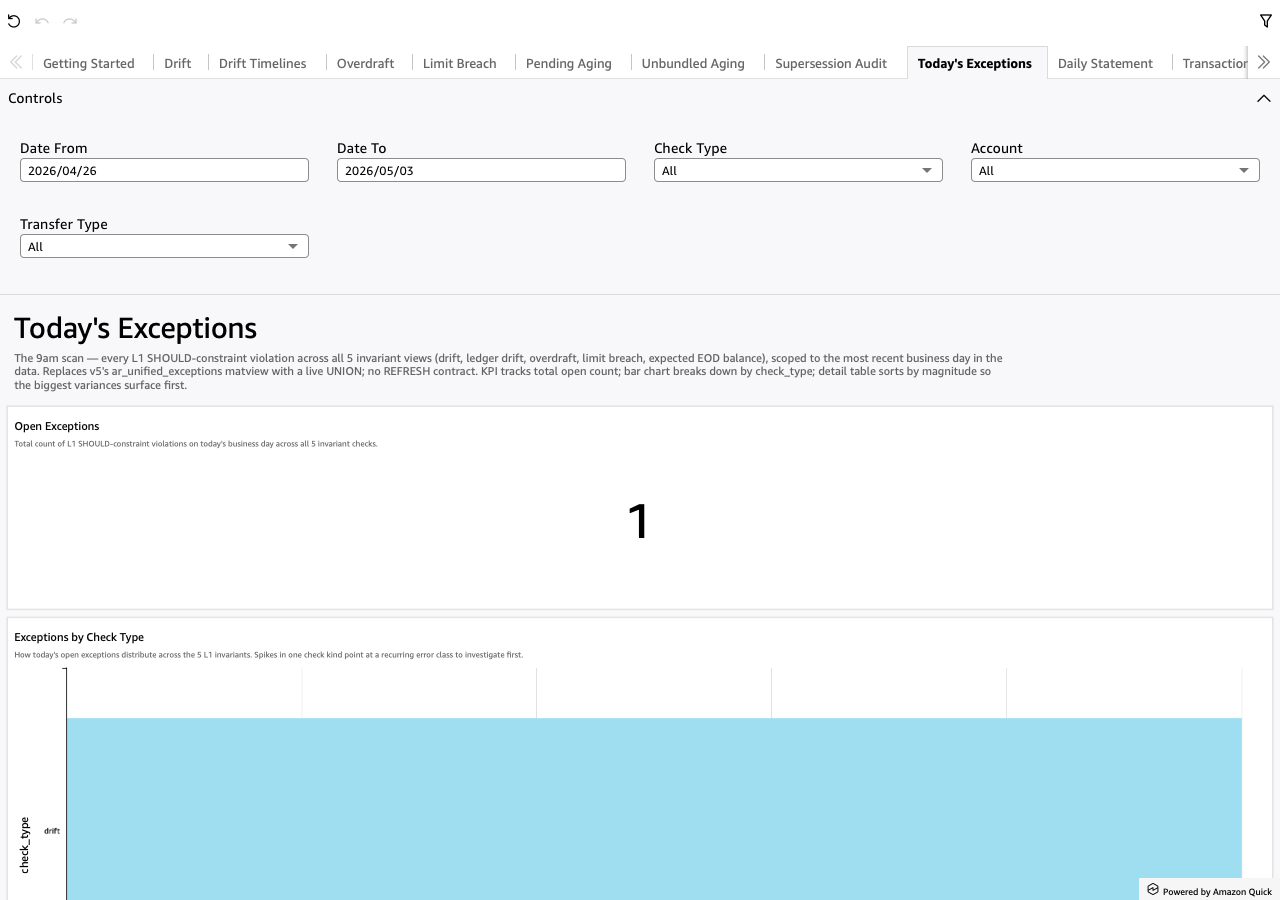

Today's Exceptions — the morning landing page

Account topology backing this render¶

What the L1 dashboard reconciles¶

Five L1 invariant views (always present) plus two aging-watch invariants (per-rail opt-in). Every row in any of these views IS a SHOULD-constraint violation; healthy = empty.

Drift

Stored balance disagrees with the cumulative net of posted Money records (leaf accounts) or with the sum of child stored balances (parent accounts).

Overdraft

An internal account ended the day with negative stored money. The L1 invariant: no internal account holds negative balance.

Limit Breach

Cumulative outbound debit on a (parent_role × transfer_type) cell exceeded the L2-configured cap for that day.

Expected EOD Balance

An account whose L2 declares an expected_eod_balance ended the day at a different amount. Surfaces in Today's Exceptions; see the L1 Invariants reference for the formal definition.

Stuck Pending

A transaction stayed in status='Pending' past its rail's max_pending_age cap. (Per-rail aging-watch — opt-in.)

Stuck Unbundled

A Posted leg with bundle_id IS NULL stayed unbundled past its rail's max_unbundled_age cap.

A separate Supersession Audit sheet surfaces logical keys with more than one entry — the audit trail for TechnicalCorrection / BundleAssignment / Inflight rewrites. Diagnostic, not a SHOULD constraint.

The analyst journey¶

The dashboard is structured top-down for a 9am morning routine. Open Today's Exceptions first. The KPI answers "did anything break overnight?" The bar chart breaks today's count down by check_type so you see the error class shape immediately. The detail table sorts by violation magnitude, biggest first.

From there:

Left-click an account_id in any Today's Exceptions row → narrows the per-invariant sheets (Drift / Overdraft / Limit Breach) to that account so you can see its specific violations in context.
Right-click → "View Daily Statement" on any row → opens the per-account-day walk: opening balance, debits, credits, closing stored, drift KPI, plus the every-leg detail table.
From any per-invariant detail row, right-click → "View Daily Statement" for the same drill-forward.
From any Daily Statement leg, right-click → "View Transactions" for the raw posting ledger filtered to that transfer's legs.

That's the canonical drill chain: Today's Exceptions → per-invariant narrowing → Daily Statement → Transactions. Every sheet is also filterable independently — date range pickers (Date From / Date To, default 7 days), per-sheet category dropdowns (Account, Account Role, Transfer Type, Rail, Status, Origin), and parameter pickers on Daily Statement (Account + Business Day).

The L2-instance contract¶

Everything the dashboard knows about your institution comes from the L2 instance YAML. The instance declares:

Accounts + their roles, scopes (internal / external), parents
Account templates (role classes that materialize at runtime)
Rails (the canonical patterns by which transfers get posted — one-leg, two-leg, aggregating; per-rail aging caps)
Transfer templates (multi-leg shared transfers with closure rules)
Chains (transfer-of-transfers ordered flows; XOR groups)
LimitSchedules (per-(parent_role × transfer_type) daily caps)
A description field on every primitive

The schema emitter common.l2.emit_schema(instance) produces a prefixed PostgreSQL DDL that creates the base tables + every L1 invariant view + every dashboard-shape matview. The dashboard reads those spec_example_* views directly. The descriptions surface as TextBox prose on each sheet — the "Configured Caps" block on Limit Breach lists every L2 LimitSchedule with its cap and prose; the "Internal Accounts in Scope" block on Drift lists every internal account's role + L2-supplied prose; the Today's Exceptions footer embeds the L2's top-level institution description.

Switching the L2 instance switches the prose. The same dashboard renders against any L2 — that's the M.2a "L1 dashboard configured by an L2 instance" promise.

Sheet inventory¶

11 sheets in display order. Click each name to jump to its walkthrough.

Getting Started

L2-derived welcome + coverage overview.

Drift

Leaf + parent account balance drift detail tables.

Drift Timelines

Σ |drift| per BusinessDay over time, line per role.

Overdraft

Internal accounts holding negative money at EOD.

Limit Breach

Per-(account, day, type) cells that exceeded the L2 cap.

Pending Aging

Pending transactions past their rail's max_pending_age.

Unbundled Aging

Posted legs with no bundle past max_unbundled_age.

Supersession Audit

Logical keys with multiple entries — the rewrite trail.

Today's Exceptions

UNION across all 5 invariants for today's business day.

Daily Statement

Per-(account, day) walk: opening + flow + closing + drift.

Transactions

Raw posting ledger; supersession-aware via the Current* matview.

Dataflow — which datasets feed which sheets¶

Cross-app integration¶

The L1 dashboard is intentionally L2-agnostic. Other dashboards that specialize the L1 surface (e.g., Investigation, Executives) can drill into L1 as a back-stop view: "any anomaly the specialized analysis flags can be checked against the institution's L1 invariants without leaving the same data plane." The shared prefix story (M.2d.3 follow-up) extends this — multiple dashboards rendering against one L2 instance's matviews, each highlighting a different question.

Generation + deployment¶

# Generate JSON for all four bundled apps to run/out/
quicksight-gen json apply -c run/config.yaml -o run/out

# Same emit, then deploy to AWS (delete-then-create)
quicksight-gen json apply -c run/config.yaml -o run/out --execute

The L2 instance defaults to the bundled spec_example fixture. To target a different L2 instance, see the customization handbook.
